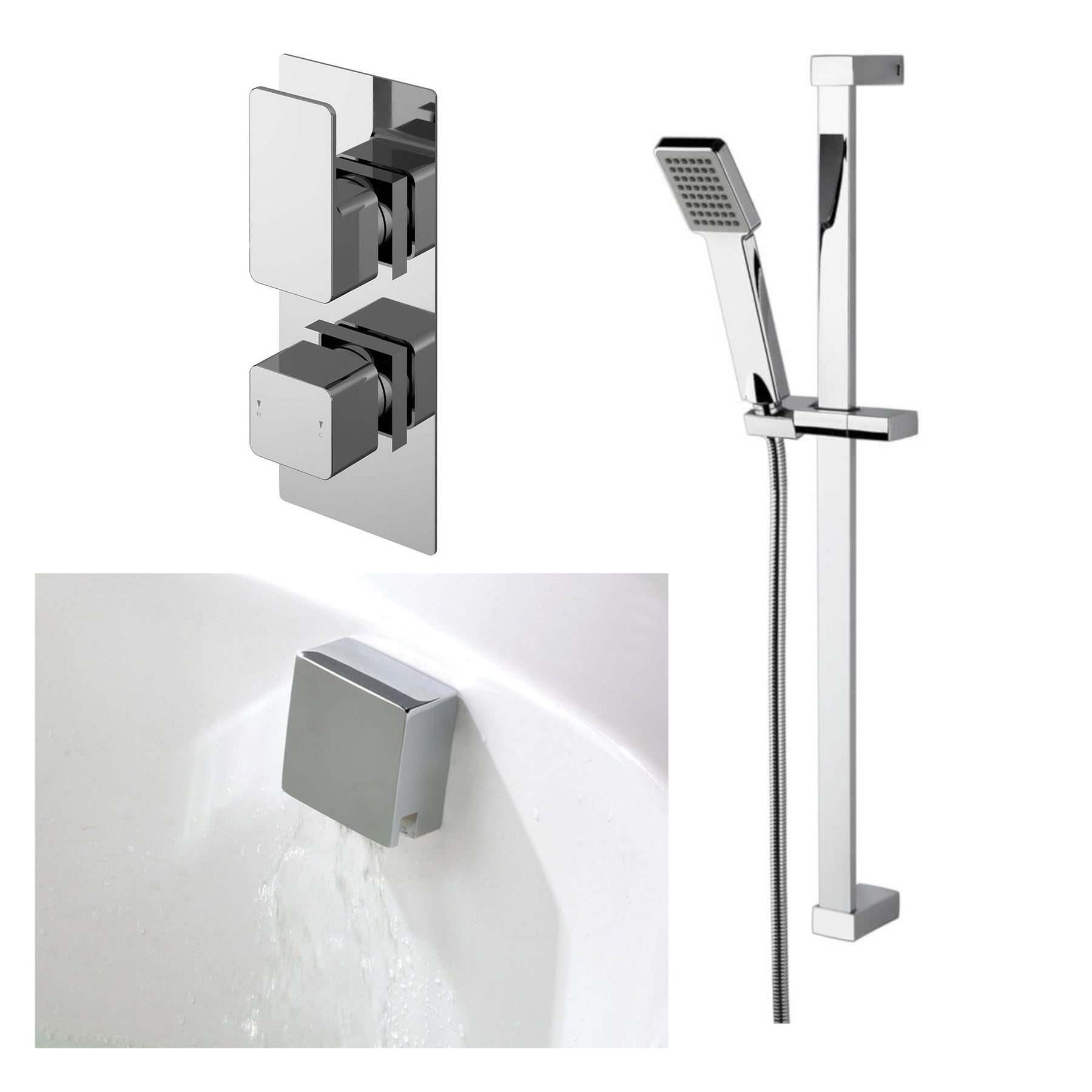

Combining a thermostatic shower kit with a minimalistic way of filling a bath, makes the Cape concealed thermostatic bath shower set a great option for those looking for a modern style shower over a bath. The concealed valve features thermostatic technology meaning that the water temperature will not change when other taps are run in the house (preventing cold or scalding showers) and has a diverter that allows you to switch from the bath filler to the shower rail kit. The bath filler waste fills the bath from the overflow on the bath which means you do not have to have separate taps fitted into the bath. The modern shower rail kit completes the set and allows you to easily shower over the bath with a height adjustable rail and contemporary square style. You will need a medium or high pressure water system of 0.5 bar or more for the set to operate properly.

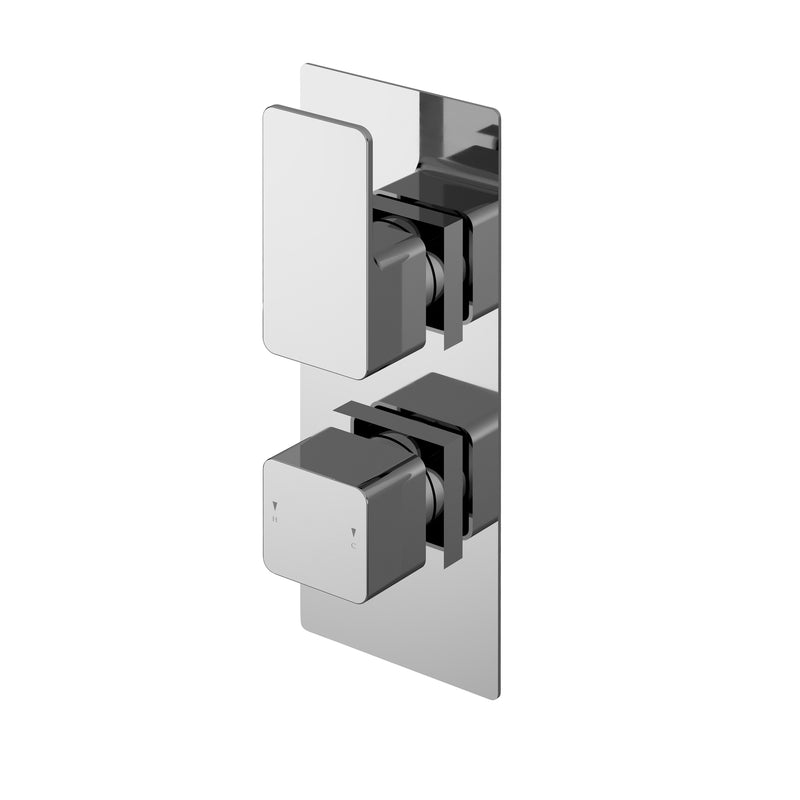

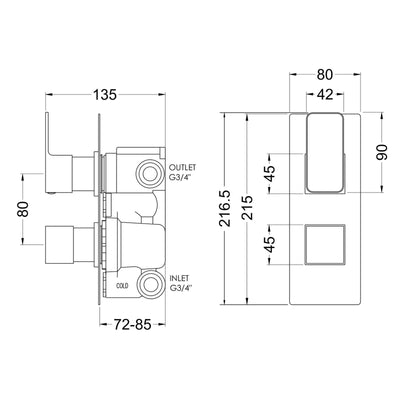

Concealed valve features

Concealed thermostatic shower valve
With 2 outlets
With diverter
Wall mounted (includes concealed parts)
Modern square style
Polished chrome finish
Top handle controls flow to either of the 2 outlets
Bottom handle controls water temperature
Thermostatic technology prevents scalding / sudden drastic changes in water temperature
With Valquest cartridge to ensure accurate flow control
Can be fitted vertically or horizontally
Cartridge is reversible so if hot and cold supplies are the wrong way round it doesn't need re-plumbing
Medium pressure 0.5 bar minimum
Brass & ABS construction
1/2" pipe connections
5 year manufacturer guarantee

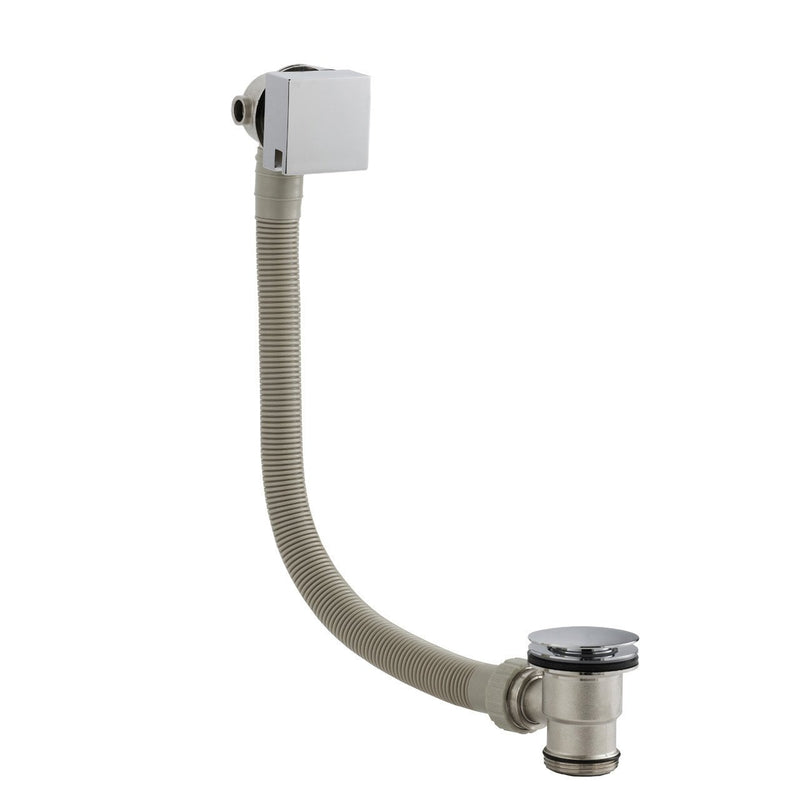

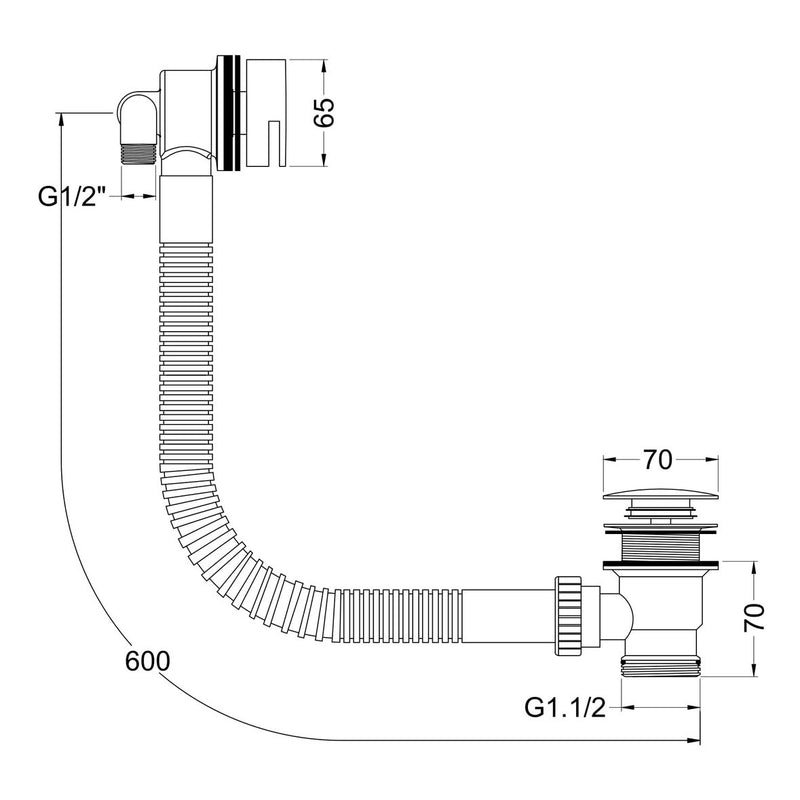

Bath filler waste features

Bath filler waste
Allows you to fill the bath from the overflow hole
Square design
For use with baths without tap holes
Requires separate valve to control water flow and temperature
Polished chrome finish
Low pressure 0.1 bar minimum
Solid brass & plastic body construction
With push down "clicker" plug system
1/2" water pipe connections
1 & 1/2" waste pipe connection
Suitable for baths of up to 18m thickness
Requires a flat edge for installation
5 year manufacturer guarantee

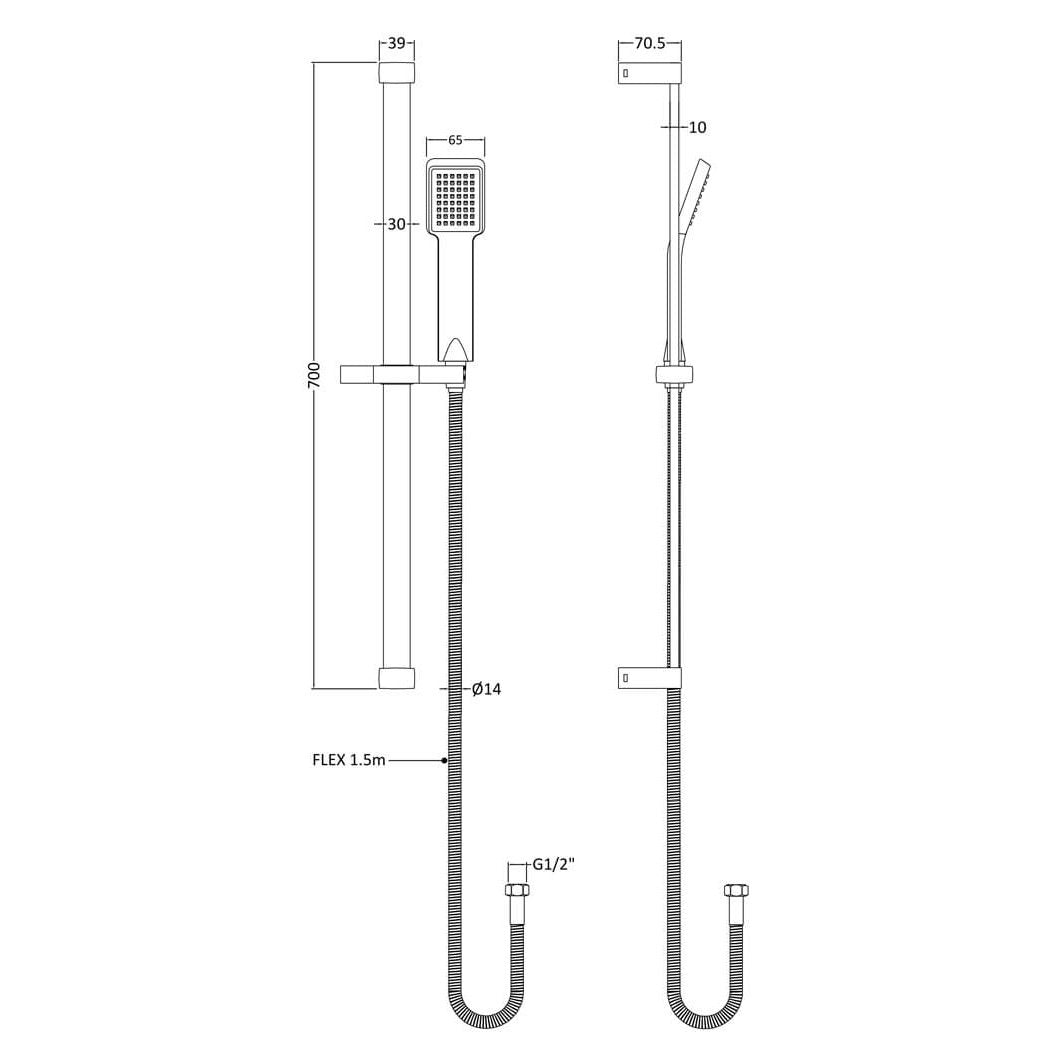

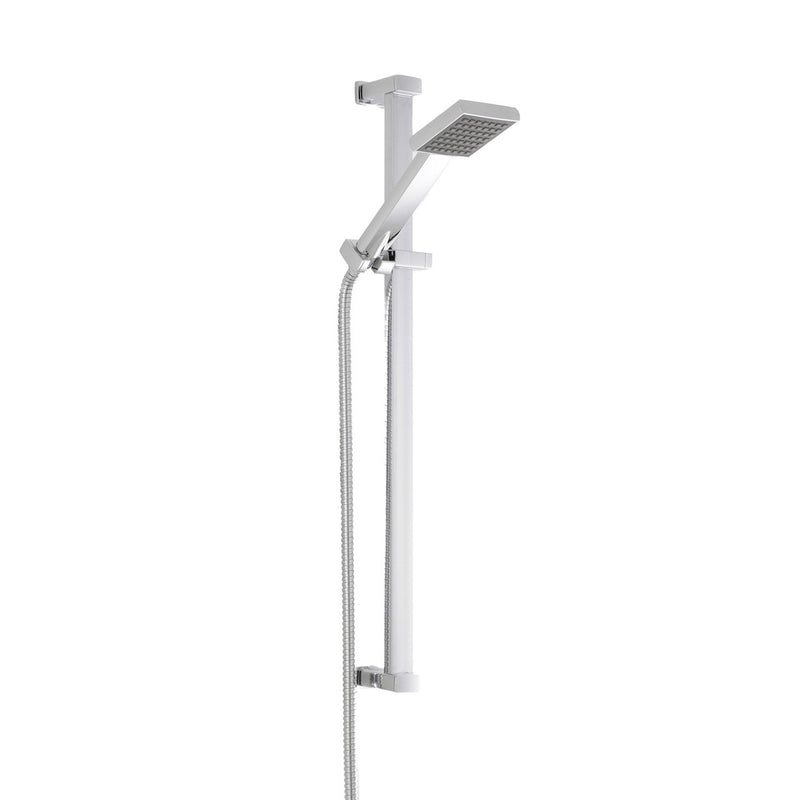

Shower rail kit features

Shower slide rail kit with handset & hose
Modern square design
Polished chrome finish
Single function handset
Height adjustable rail kit allows you to set shower at desired height

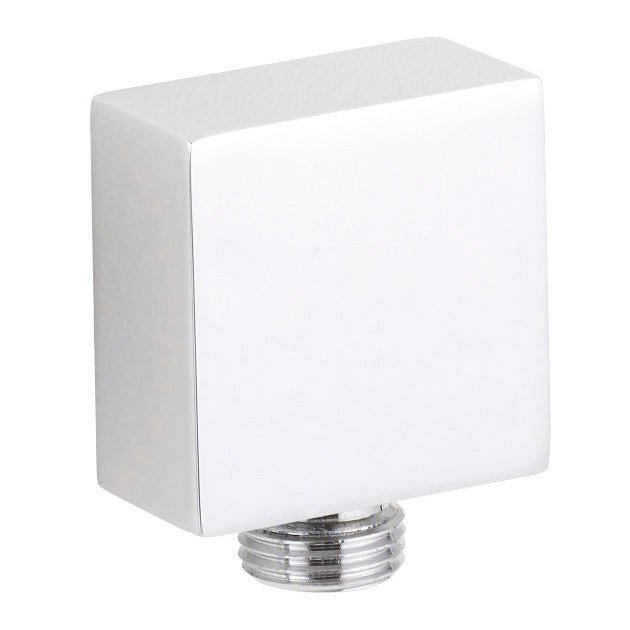

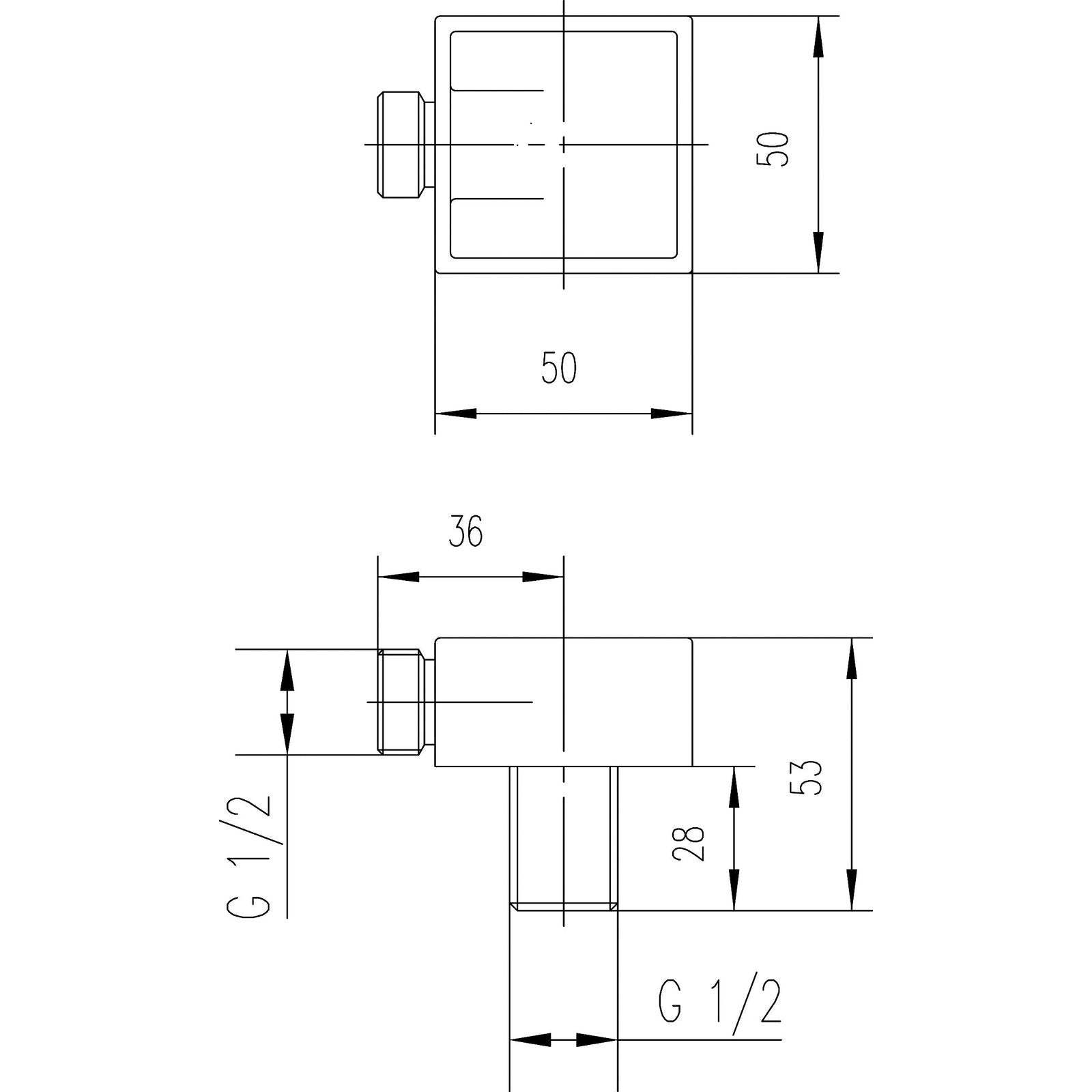

Square wall outlet included
1.5m shower hose
Brass / ABS construction
Low pressure 0.1 bar minimum
1/2" connection
5 year manufacturer guarantee
